January 30, 2025

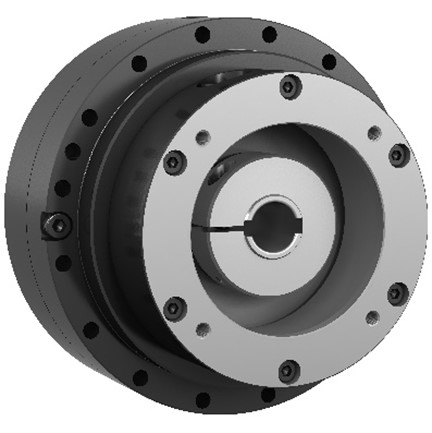

Sumitomo Heavy Industries, Ltd. (Head Office: Shinagawa-ku, Tokyo; Representative Director, President and CEO: Shinji Shimomura) will launch a new, easy-to-mount, zero-backlash “DA Series gear head for servo motors” as part of its lineup of Fine CYCLO® high precision gearboxes from January 30, 2025.
This product is suitable for high-precision positioning and can be utilized in machine tools, semiconductor manufacturing devices, and other equipment.

■Product Features
1.Outstanding Compactness

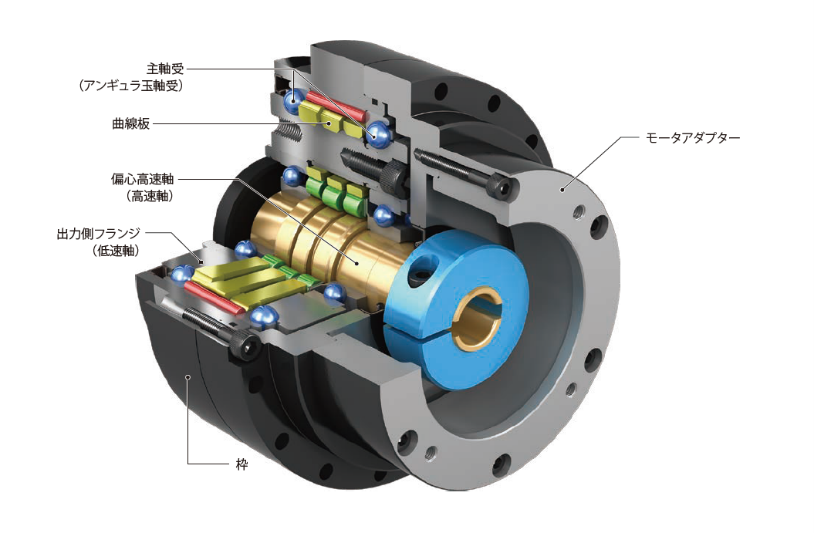

The overall length and outer diameter dimensions are significantly reduced by directly connecting the servo motor shaft to a single-stage reduction mechanism.

2.Easy to Assemble
Zero backlash gearhead with a motor adapter and a sealed structure (filled with lubricating grease) make assembly easy and no requirement for grease preparation. Lost motion is 1 arc-minute.

3.High Torque and High Allowable Moment
Maximum allowable peak torque increased by 60% (compared to the conventional model).
Maximum allowable moment increased by 41% (compared to the conventional model).

4.Excellent Cost Performance
The single-stage reduction mechanism achieves a simple structure with fewer parts, resulting in excellent cost performance.

■Product Details
Further details about this product are available here:
https://japan.sumitomodrive.com/en-jp/product/fine-cyclo-high-precision-gearboxes-da-gearhead

> Download product leaflet (Japanese Only):
https://cyclo.shi.co.jp/document-download/do-search/?document_key=F2007

■Product Selection Tool (Japanese Only)
We have also introduced a selection tool that can quickly select this product and check its specifications.

・Selection by Motor Manufacturer:
Can select from servo motor manufacturer, series, and specification.
https://cyclo.shi.co.jp/apps/mcd/da-selection/maker/

・Selection by Model:
Can check the product specification from the model code.
https://cyclo.shi.co.jp/apps/mcd/da-selection/model/

[Inquiries]
For inquiries and advice about this product, please contact us at:
https://cyclo.shi.co.jp/inquiry/
