Large Gearboxes

Large Gearboxes that can be specially designed and optimally customized for industrial machinery

Offering a wide variety of options, application products, and various special design products, including Paramax® that achieve both short delivery times and high quality by systematic combination of components.

Click here for detailed information about Large Gearboxes

Power Transmission & Controls Group

Paramax®
Specialized Gearboxes
Coupling
Product lines
Contact

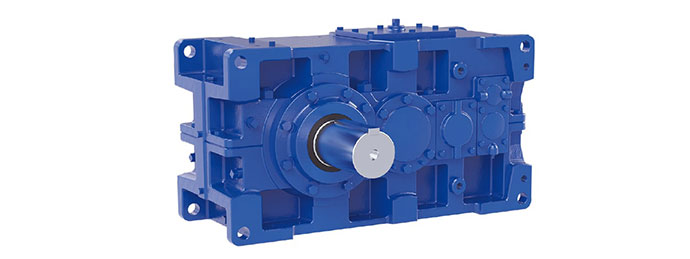

Paramax® 9000 Series

Achievement of short lead time and high quality at the same time by combining components systematically

High gear tooth strength

Although the general gear has a pressure angle of 20 degrees, the gear for PARAMAX has 25 degrees. Larger pressure angle can secure thicker dedendum resulting in stronger gear tooth. This makes possible the design of a gear box with larger load capacity and higher impact load resistance.

Tooth profile of 9000 series (pressure angle of 25 degrees)

Tooth profile of general gear (pressure angle of 20 degrees)

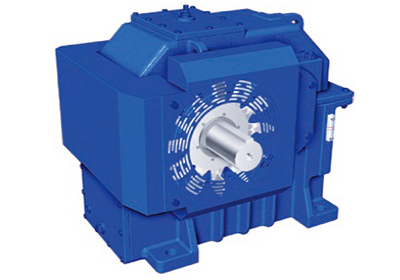

Improvement in thermal capacity

Cooling effect is significantly improved with the adoption of a newly designed cooling fan and a cooling air duct cover. Improved thermal capacity can prevent deterioration of lubrication oil due to overheating of the reducer main unit, and the reducer can be used even under severe operation conditions including continuous operation with sufficient margin.

Application

Various product lineups including the products with abundant options, various specially designed products, and applied products are available.

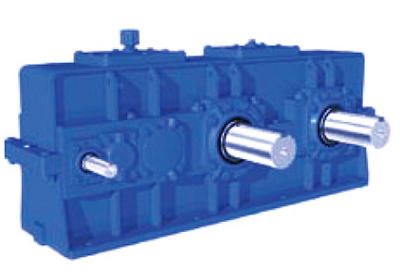

SHC Series for garbage cranes with double shafts

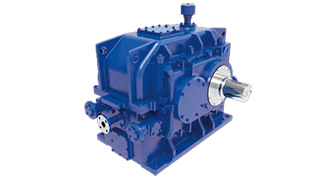

SGD Series for opening and closing sluice gates

Rated torque: 2.6 to 552kN･m

Reduction ratio: 6.3 to 500

Motor type: Three phase, Premium efficiency, High efficiency, For inverter, Outdoor, Increased safety explosion proof, Flameproof, Overseas standard

Specialized Gearboxes

Dedicated design according to the customer's machine. Large-sized gearbox which enables optimal customization

Supports lifelines

Crushing of materials

Extraction of materials

Manipulation of water

Kneading of materials

Coupling

Sumitomo Couplings series are suitable for various terms of use. Immediate delivery is available

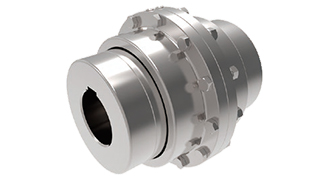

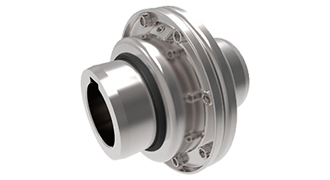

Compact sized coupling with high torque transmitting capability.
High wear resistance and toughness.

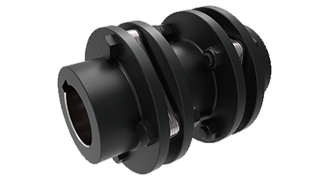

No need for lubrication, Zero-Backlash, Maintenance-free. High-allowable rotation frequency.

SF-Coupling absorbs shock road by the grillwork spring. In addition, its assembling is simple with single-layered taper grid structure.

Reference torque: 421-6,460,000N･m (Seisa GC Coupling)
35.3-255,950N･m (DC Coupling)
52.0-932,100N･m (SF Coupling)

Product lines

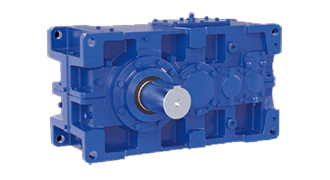

PARAMAX® 9000 Series

Compact with the use of of high strength gear.
High-functionality, high-performance parallel shaft type speed reducer.
Rated torque: 2.6 to 552kN･m

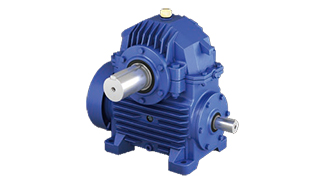

HEDCON® Worm Gear Reducer

High-performance worm gear reducer for high efficiency and high strength by the use of the unique double contact theory.
Rated torque: 0.8 to 82kN･m

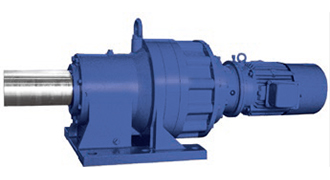

COMPOWER® Planetary Gear Drive

High torque and also compact in the radial direction. Significantly shorter total length achieved with creative ideas and mechanisms.
Rated torque: 0.46 to 736kN･m
