Forklifts

New forklift incorporating a dual battery for the first time
in the industry QuaPro-B Dual
Battery-operated reach forklift QuaPro-R

Click here for detailed information about Forklifts

Features

Battery-operated reach forklift QuaPro-R

The battery-operated reach forklift QuaPro-R is our flagship model, which has achieved the industry's top energy-saving performance and maneuverability in small spaces by improving significantly on the present models.

  1. 1Extended operation with environmentally friendly energy saving performance

    This model adopts an embedded battery synchronous (1PM) motor that is used for hybrid vehicles as the drive motor, and the AC motor for loading to thoroughly enhance efficiency. The substantial energy saving performance makes it possible to operate it for 9.8 hours on a single charge.

  2. 2Smooth turning and excellent maneuverability in small spaces

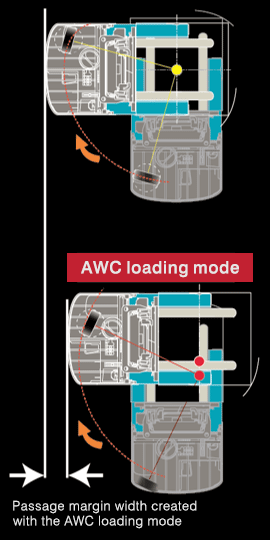

    Making small turns is an important element for reach vehicles. The excellent maneuverability in small spaces leads to narrower passages and greater storage efficiency. If the passage width remains the same, it can make turns easily, leading to a reduction in accidents. Our patented technology AWC (small turn control) reduces the passage width for practical loading at right angles by 130mm, and has achieved the industry's smallest width of 2,540mm.

  3. 3Maneuverability in response to the operator's requirements

    In order to provide more natural maneuverability in response to the operator's requirements, we thoroughly reviewed the driving performance and loading inching. In addition, the aforementioned AWC makes it possible for everyone to master turning technology just like skilled workers, and it is possible to operate the forklift as required.

New forklift incorporating a dual battery for the first time in the industry QuaPro-B Dual

The dual battery forklift is a counterbalance type of electric forklift equipped with a lithium-ion battery and a lead-acid battery, and it features extended operations and a long battery life. It achieves extended operations without the exchange of batteries, which was impossible for previous electric vehicles, and a long life of the lead-acid battery.

  1. 1The industry's first dual batteries

    This forklift incorporates two types of batteries, namely a lithium-ion battery and a lead-acid battery, for the first time in a forklift. It provides extended operations and long life by taking advantage of the respective batteries.

  2. 2Extended operations

    This forklift reuses regenerative energy from speed reduction to charge the lithium battery. In addition, as the battery supports rapid charging, it is possible to operate it for an extended period without exchanging the batteries through the combined use of additional charging, depending on the operating conditions. It is expected to extend operation up to about eight hours, and it leads to economic benefits, for example eliminating the need for a spare battery.

  3. 3Long life

    It is possible to restrain the level of discharge of the lead-acid battery through the effective use of the lithium-ion battery, and this therefore makes the life of the lead-acid battery longer. It can therefore be expected to reduce the costs of battery exchange.

Product lines

For detailed information about the products please contact
