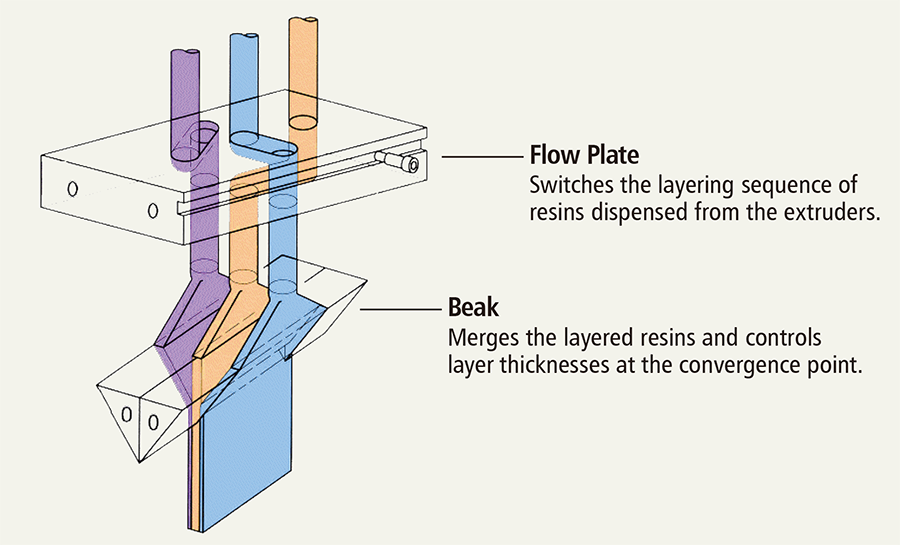

This proprietary combining adapter is designed for multi-layer forming with a T-die. Layers are easily changed by replacing the flow plate, which lends itself superbly for small lot production of differing products. The beak shape can be changed to stabilize layer thickness and improve thickness accuracy even with differing resins.
Moreover, the beak is stationary and changed out according to product, so adjusting is not necessary, which has the effect of reducing scrap loss. The combining adapter has few parts and can be disassembled, cleaned and reassembled in a short amount of time, so maintenance is easy, too.
