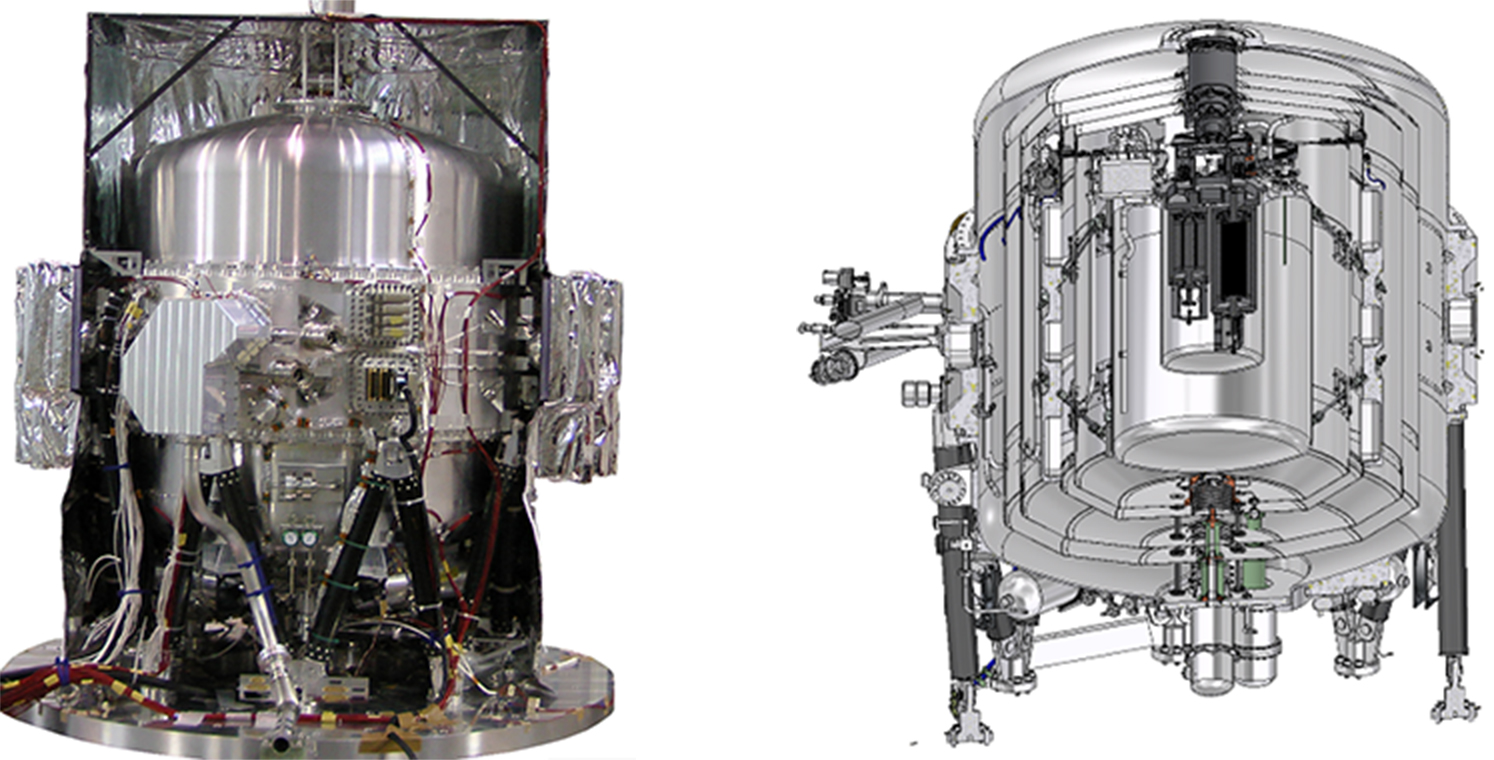

Cryostats (Cooling Device)
The cryostat for space is the culmination of Sumitomo Heavy Industries' cryotechnology that combines vacuum containers, liquid helium containers, and cryocoolers. The cryostat is only cooled by the cryocooler, which will become the mainstream in the future.
| Item | Specifications |
|---|---|
| Cooling temperature | 1.2K |
| Cooling method | Superfluid helium + 4K cryocooler + 20K Stirling cryocooler |
| Cooling target | X-ray detector + magnetic cryocooler The magnetic cryocooler cools the X-ray detector to 0.05K. This cryostat absorbs the waste heat of the magnetic cryocooler. |
| Service life | Over 3 years |
Infrared astronomy satellite Akari (ASTRO-F) |
X-ray astronomy satellite Hitomi (ASTRO-H) |
Lunar probe Kaguya (SELENE) |
Venus probe Akatsuki (PLANET-C) |
Climate change observation satellite Shikisai (GCOM-C) |
Superconducting Sub-millimeter-Wave Limb-Emission Sounder “SMILES” (equipped on the International Space Station) |
X-Ray Imaging and Spectroscopy Mission (XRISM) |
X-Ray Imaging and Spectroscopy Mission (XRISM) |
Hyper spectrum sensor (equipped on the International Space Station) |
Dual wavelength infrared sensor for satellites (equipped on ALOS-3) |
