Ultrahigh Pressure Generator
Sumitomo Heavy Industries integrates years of experience in designing and manufacturing all kinds of presses with servo control technology to provide the most suitable ultrahigh pressure generator based on customer needs.

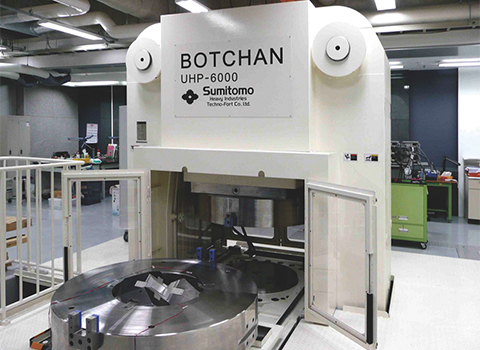

Ultrahigh pressure generator: UHP-6000
| Model | UHP-6000 |
|---|---|
| Pressurization capacity | 60,000kN |
| Pressurization method | Single-axis, six-part pressurization guide block
|
| Designed pressure | 65MPa |
| Frame structure | Picture frame stacked |

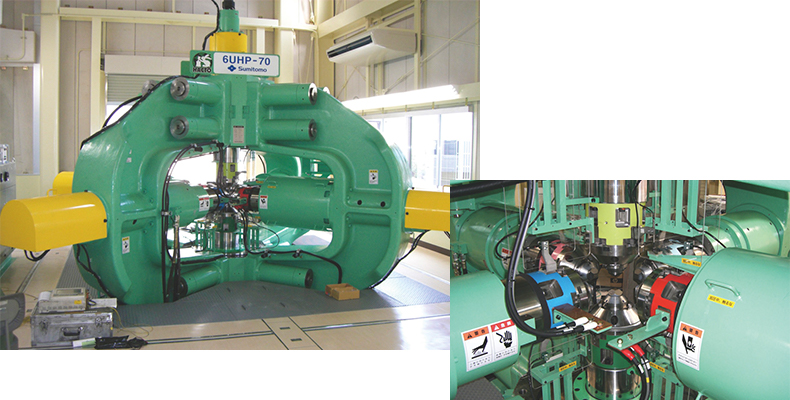

Ultrahigh pressure generator: 6UHP-70
| Pressurization method | 6-axis independent pressurization method, hybrid cylinder (oil hydraulic + servomotor driven) |
|---|---|
| Pressurization axis | 6-axis independent servo control |
| Pressurization capacity | 6,500 kN/1 axis |
| Pressurization method | 6-axis independent pressurization |
| Designed pressure | 65MPa |
| Micro displacement control device | 1,000kN / 1 axis, servo motor driven |
| Frame structure | Tie rod kiln-baked frame |
