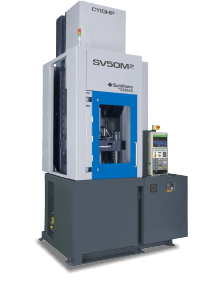

All-electric Vertical Injection Molding Machine
This single-action vertical molding machine is suited for molding hoops, etc.
It has a direct drive injection unit that enables precision, stable molding.
Precision stability at its best

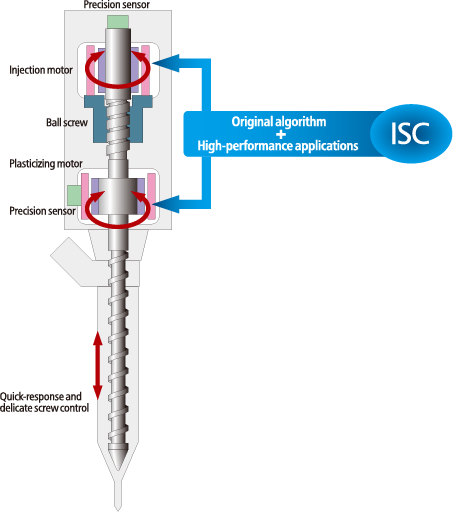

Direct drive system
The originally-developed low-inertia servomotor is controlled by an advanced control system ISC (Intelligent Servo Controller).
It allows the screw to achieve high-precision and high-response control, so precision and stability of plasticizing, filling and holding pressure processes can be satisfied.
Advanced filling control
Flash Control
It precisely controls the behavior of the screw in the filling process, and performs smooth and complete filling using the viscoelasticity of the resin.
Support for composite molding of thin-walled products and multi-cavity molds

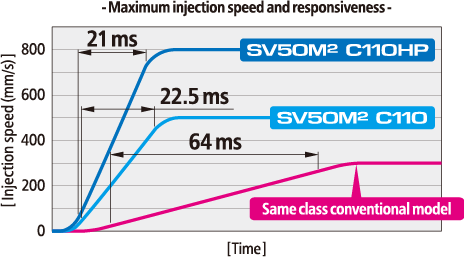

Ultra high-speed injection unit
For the SV50M2, users can select the ultra high-speed injection unit C110HP with the maximum injection speed of 800 mm/s.
Lineup
