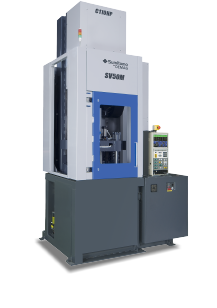

All-electric Vertical Injection Molding Machine
The SV-M series is a group of all-electric, single-action vertical machines that demonstrate the fruits of
their precision stability and work efficiency pursuits
in hoop molding and other applications.
![SV-M](./img/sv-m/img1.png)
![Catalog](./img/sv-m/img-pdf.png)
Precision stability at its best

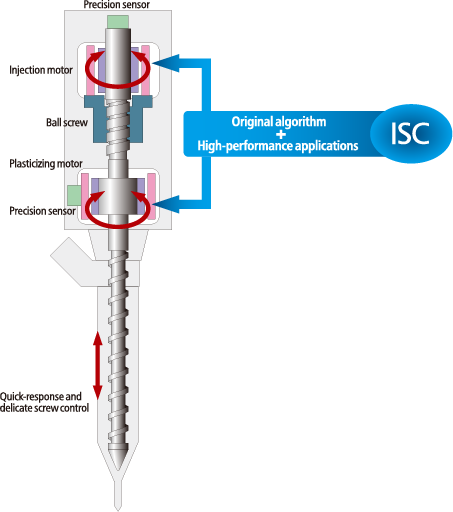

Direct drive system
The machines employ purpose-specific servomotors and
an advanced Intelligent Servo Controller (ISC) to control them.
As a result, the screw is nimbly responsive to control commands and super-precise
in how it operates, thus ensuring users greater accuracy and stability in plasticization,
filling and holding pressure processes.
![](./img/sv-m/img2.png)

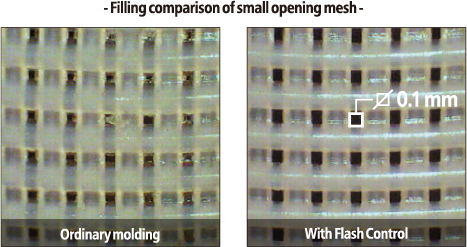

Advanced filling control
Flash Control
Screw behavior is dexterously controlled during
the filling process so that resin viscosity can be used to smoothly and fully fill cavities.
![](./img/sv-m/img3.png)
Support for composite molding of thin-walled products and multi-cavity molds

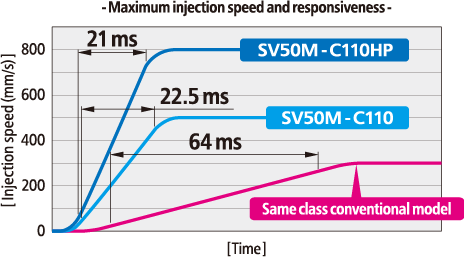

Ultra high-speed injection unit
With the SV50M, users can opt for the C110HP
ultra high-speed injection unit that delivers 800 mm of
resin per second.
This level of injection performance supports composite
molding of thin-walled products and multi-cavity molds.
![](./img/sv-m/img4.png)
