Hybrid Small-sized Injection Molding Machine
Hybrid Small-sized Injection Molding Machine Hybrid Small-sized Injection Molding Machine
Hybrid Small-sized Injection Molding Machine

Smallest machine in 18 tf class

Reduces the footprint of
molding lines

The iM18E allows users to greatly shrink the amount of space occupied by equipment because it has the smallest footprint of any 18 tf class molding machine, comes with an injection unit that does not require turning and is designed so that peripheral units can be housed in the underbelly of the machine frame.
Because it recoups space, it allows users to build molding lines with more molding machines.

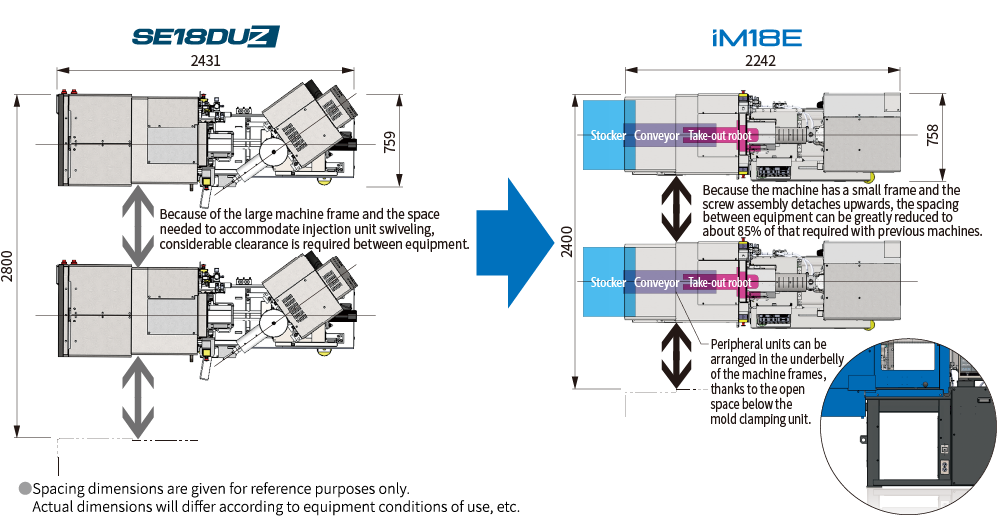

- Footprint comparison -


im18e
- Footprint comparison - - Footprint comparison -
se18duz

Reduces the footprint of molding lines

Half the power consumption of a hydraulic machine

Greatly reduces
running costs

A hybrid power drive and dramatic improvements in power-saving technology greatly reduce power consumption.
The energy reductions will help businesses realize sustainability goals.

- Power consumption comparison -


im18e
0.15kWh
- Power consumption comparison - - Power consumption comparison -
im18
0.31kWh
Data was measured using an external watt-hour meter during stable continuous molding. Data was measured using an external watt-hour meter during stable continuous molding.

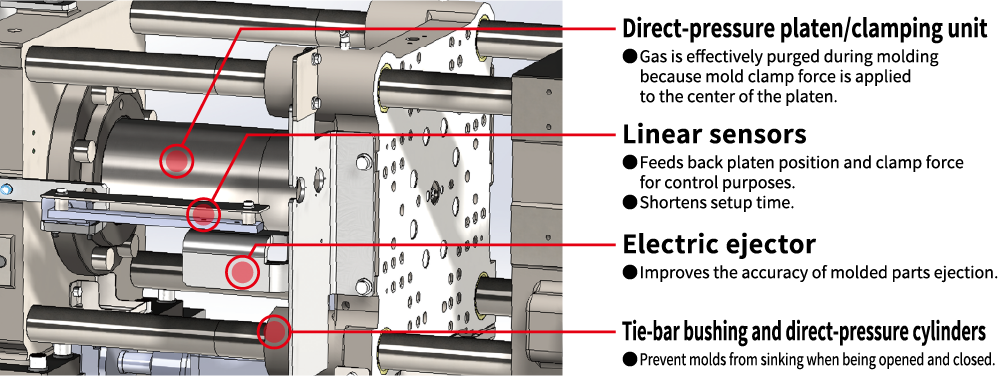

Achieves high-precision mold clamping in a compact manner

Hydraulic direct-pressure mold clamping unit

The hydraulic direct-pressure mold clamping unit improves gas purging, shortens setup time and makes the machine that much smaller.

油圧直圧式型締装置

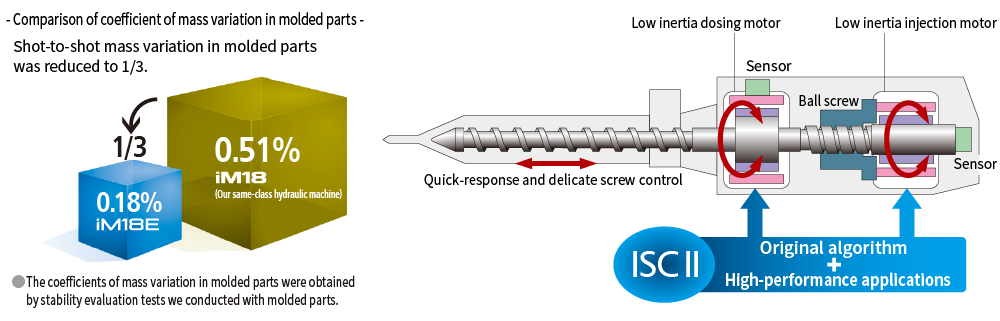

Stable high-precision in fast injection

Electric injection unit

The injection unit incorporates a low-inertia servomotor we developed ourselves.
It then uses a direct drive system and the ISC II (Intelligent Servo Controller II) to control the screw to a high degree of precision.
The improvements we made to both the hardware and control system have further enhanced precision stability and raised the top injection speed.

PAT. pend. in Japan

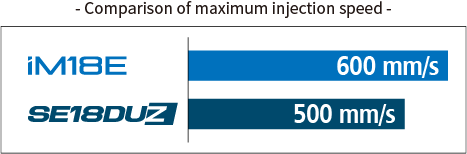

- Comparison of maximum injection speed -

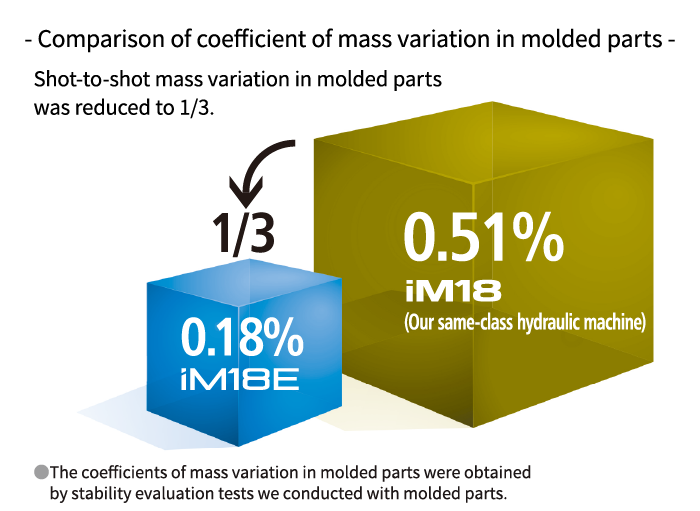

- Comparison of coefficient of mass variation in molded parts -・ISC2 - Comparison of coefficient of mass variation in molded parts - ISC2

Higher accuracy at lower costs

Screw assembly
for connector

It stabilizes resin dosing and shot consistency, which greatly reduces the fluctuations in dosing time.
The dosing movement keeps to be stable even if crushed materials rate rises, which improves yield and reduces the material cost.
Connector spec B supports molding of environment-friendly resins such as halogen-free resin.

Optional

- Resin cost comparison -


Connector
screw assembly
- Resin cost comparison - - Resin cost comparison -
General
screw assembly
The stable molding is kept even if crushed materials rate is increased by 10%, so the usage rate of virgin materials can be decreased. The stable molding is kept even if crushed materials rate is increased by 10%, so the usage rate of virgin materials can be decreased.

Cost-down and better productivity

FTC III nozzle

It prevents stringing and clogging by evenly distributing temperature using 2-zone temperature control.
In addition, its long protrusions reduce the resin consumption of the sprue and shorten the mold opening stroke, which shorten cycle time.
Moreover, heaters can be detached or attached simultaneously, which facilitates maintenance and shortens machine downtime.

Optional

- Maintenance cost comparison -


FTC III nozzle
- Maintenance cost comparison - - Maintenance cost comparison -
FTC nozzle (Previous type)
Less time is required to detach and reattach the nozzle heater, which means less risk of damage and much lower maintenance costs. Less time is required to detach and reattach the nozzle heater, which means less risk of damage and much lower maintenance costs.
