Platens keep high parallelism

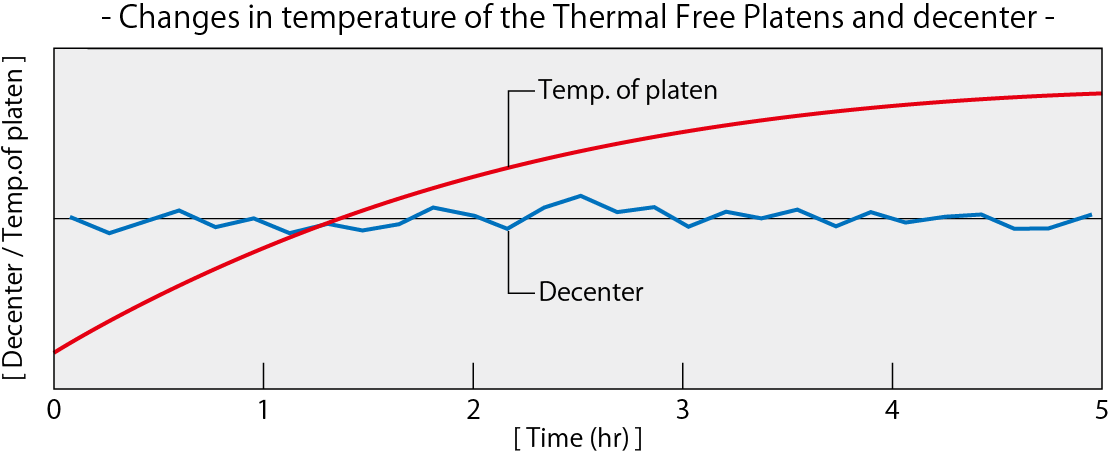

Thermal Free Platens that minimize any irregular deformation due to heat,resulting in a platen that keep platen parallelism and straightness.
Conventional Platens
Heat flow model
Temperatures differ above and below the platen
because heat propagated to the frame.
Deformation accentuating model
Deformation is uneven across the platen, so the platen does not stay flat.
Thermal Free Platens
Heat flow model
Heat propagates symmetrically upwards/downwards.
Temperature is the same above and below the
platen.
Deformation accentuating model
Upward/Downward deformation is even across the platen, so the platen stays flat.

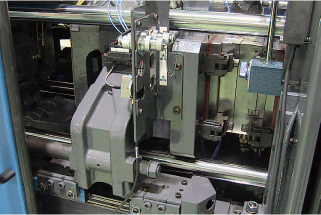

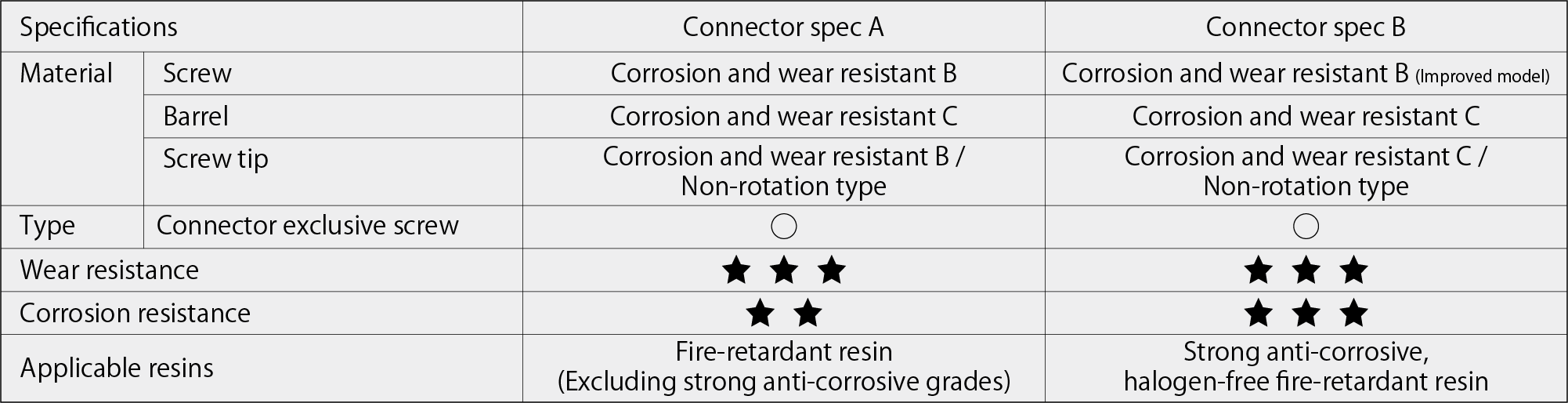

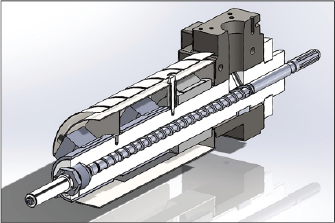

Specialized for connector molding
for connectors
The result is a yield improvement to reduce material costs.
【Comparison of resin costs】
- FTCIII nozzle
-
- Same class conventional machine
[ Resin cost ]
A stable molding process is enabled even if the regrind ratio is increased by 10%. So the use of virgin material can be reduced.
Helps to reduce costs and improve productivity

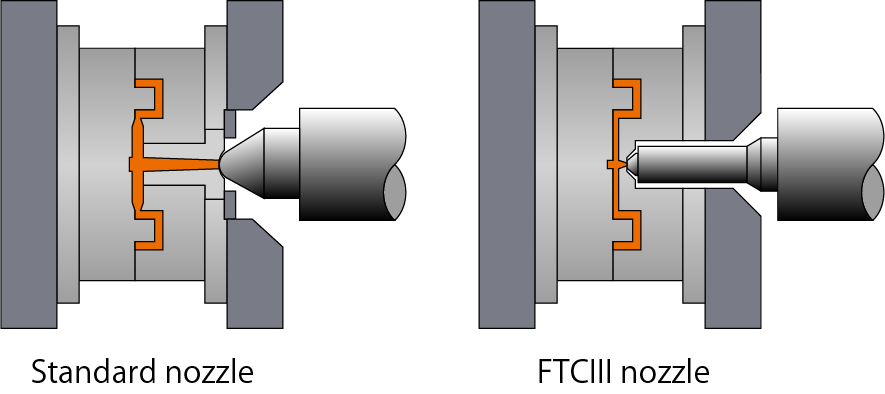

Additionally, with its long reach, it reduces the amount of sprue plastic material and shortens the mold opening stroke, which leads to a faster cycle.

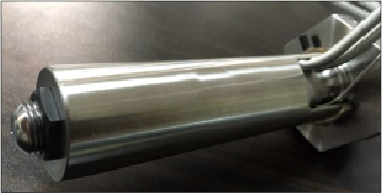

Moreover, the nozzle can be detached quickly and easily, which facilitates cleaning and shortens machine down time.
【 Comparison of nozzle maintenance costs】
- FTCIII nozzle
-
- FTC nozzle (Older type)
[ Maintenance cost ]

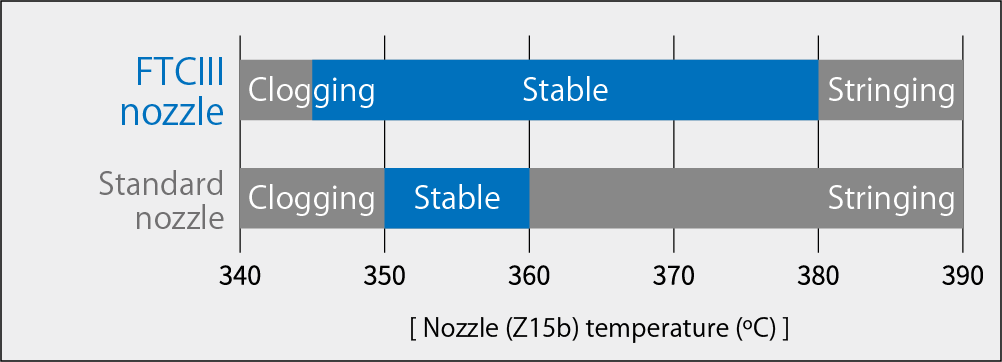

【Comparison of applicable molding conditions (LCP)】
The FTCIII nozzle provides a wider process window without causing stringing or clogging.
This eases the difficulty of setting molding conditions.
