Standard･High Speed
All electric injection molding machine
All electric super high speed injection molding machine
All electric injection molding machine
SEEV-A (Clamping Force : 500kN～1800kN)
Advanced All-electric Small-sized Injection Molding Machine
SEEV-A is the standard of small-sized machine, which realizes speedy start up, precise and stable production, and minimizing of management and environmental loads. New functions such as improved controller make a contribution to increase in productivity.
- Specifications
-
SE50EV-A Specifications Unit Figures Max. mold clamp force kN{tf} 500 Clearance between tie-bars (WxH) mm 360×360 Clamp platens max. (WxH) mm 500×500 Mold space mm 160～350 Plasticizing capacity C65 C110 C160 Screw diameter S S S mm 18 20 22 25 22 25 28 25 28 32 Maximum injection pressure MPa 274 265 220 170 274 212 174 274 218 167 Injection mass (GPPS) g 19 24 28 37 38 49 61 49 61 80 Plasticizing capacity kg/h 10 13 18 26 18 26 37 26 37 53 Maximum injection speed mm/s 550 500 400 Dimensions (LxWxH) mm 3619×1082×1676 Machine mass t 2.4 2.5 SE75EV-A Specifications Unit Figures Max. mold clamp force kN{tf} 750 Clearance between tie-bars (WxH) mm 420×420 Clamp platens max. (WxH) mm 580×580 Mold space mm 160～410 Plasticizing capacity C110 C160 C250 Screw diameter S S M mm 22 25 28 25 28 32 28 32 36 Maximum injection pressure MPa 274 212 174 274 218 167 284 217 171 Injection mass (GPPS) g 38 49 61 49 61 80 83 108 137 Plasticizing capacity kg/h 18 26 37 26 37 53 37 53 76 Maximum injection speed mm/s 500 400 350 Dimensions (LxWxH) mm 4194×1152×1706 4194×1152×1771 Machine mass t 3.1 3.2 3.3 SE100EV-A Specifications Unit Figures Max. mold clamp force kN{tf} 1000 Clearance between tie-bars (WxH) mm 460×460 Clamp platens max. (WxH) mm 650×650 Mold space mm 180～450 Plasticizing capacity C110 C160 C250 C360 Screw diameter S S M M mm 22 25 28 25 28 32 28 32 36 32 36 40 Maximum injection pressure MPa 274 212 174 274 218 167 284 217 171 273 215 175 Injection mass (GPPS) g 38 49 61 49 61 80 83 108 137 124 156 193 Plasticizing capacity kg/h 18 26 37 26 37 53 37 53 76 53 76 101 Maximum injection speed mm/s 500 400 350 350 Dimensions (LxWxH) mm 4502×1195×1772 4502×1195×1837 Machine mass t 4.1 4.1 4.3 4.4 SE130EV-A Specifications Unit Figures Max. mold clamp force kN{tf} 1300 Clearance between tie-bars (WxH) mm 510×510 Clamp platens max. (WxH) mm 720×720 Mold space mm 180～450 Plasticizing capacity C160 C250 C360 C450 Screw diameter S M M M mm 25 28 32 28 32 36 32 36 40 36 40 45 Maximum injection pressure MPa 274 218 167 284 217 171 273 215 175 259 209 165 Injection mass (GPPS) g 49 61 80 83 108 137 124 156 193 156 193 244 Plasticizing capacity kg/h 26 37 53 37 53 76 53 76 101 76 101 136 Maximum injection speed mm/s 400 350 350 350 Dimensions (LxWxH) mm 4728×1295×1817 4728×1295×1882 4728×1295×1977 Machine mass t 5.0 5.2 5.3 5.4 SE180EV-A Specifications Unit Figures Max. mold clamp force kN{tf} 1800 Clearance between tie-bars (WxH) mm 560×560 Clamp platens max. (WxH) mm 800×795 Mold space mm 200～500 Plasticizing capacity C250 C360 C450 C560 Screw diameter M M M M mm 28 32 36 32 36 40 36 40 45 40 45 50 Maximum injection pressure MPa 284 217 171 273 215 175 259 209 165 274 216 175 Injection mass (GPPS) g 83 108 137 124 156 193 156 193 244 193 244 302 Plasticizing capacity kg/h 37 53 76 53 76 101 76 101 136 101 136 193 Maximum injection speed mm/s 350 350 350 350 Dimensions (LxWxH) mm 5133×1365×1923 5133×1365×2018 Machine mass t 6.4 6.5 6.6 6.8
SEEV-A-HD (Clamping Force : 2200kN～5000kN)
The standard of middle-sized machine realizing upgrading and downsizing
Zero-molding can reduce the mold clamp force without sacrificing precision and stability. Ample mold mounting capability and improved injection capacity guide production sites to innovation. Furthermore, the lineup of clamp force is extended from 4 to 8.
- Specifications
-
SE220EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 2200 Clearance between tie-bars (WxH) mm 660×660 Clamp platens max. (WxH) mm 930×930 Mold space mm 200～600 Plasticizing capacity C750HD C1100HD Screw diameter M L mm 45 50 50 56 63 Maximum injection pressure MPa 215 174 230 187 148 Injection mass (GPPS) g 323 399 490 614 778 Plasticizing capacity kg/h 98 134 151 192 227 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 6466×1832×2025 Machine mass t 11.1 SE250EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 2500 Clearance between tie-bars (WxH) mm 660×660 Clamp platens max. (WxH) mm 930×930 Mold space mm 200～600 Plasticizing capacity C750HD C1100HD Screw diameter M L mm 45 50 50 56 63 Maximum injection pressure MPa 215 174 230 187 148 Injection mass (GPPS) g 323 399 490 614 778 Plasticizing capacity kg/h 98 134 151 192 227 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 6566×1832×2025 Machine mass t 11.1 SE280EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 2800 Clearance between tie-bars (WxH) mm 730×730 Clamp platens max. (WxH) mm 1020×1020 Mold space mm 300～650 Plasticizing capacity C1100 C1600 C2200 Screw diameter L L L mm 50 56 63 56 63 71 63 71 80 Maximum injection pressure MPa 230 187 148 230 188 148 216 188 148 Injection mass (GPPS) g 490 614 778 685 867 1102 957 1216 1544 Plasticizing capacity kg/h 151 192 227 192 227 230 227 230 303 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 7236×1972×2059 Machine mass t 14.3 SE315EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 3150 Clearance between tie-bars (WxH) mm 730×730 Clamp platens max. (WxH) mm 1020×1020 Mold space mm 300～650 Plasticizing capacity C1100 C1600 C2200 Screw diameter L L L mm 50 56 63 56 63 71 63 71 80 Maximum injection pressure MPa 230 187 148 230 188 148 216 188 148 Injection mass (GPPS) g 490 614 778 685 867 1102 957 1216 1544 Plasticizing capacity kg/h 151 192 227 192 227 230 227 230 303 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 7336×1972×2059 Machine mass t 14.3 SE350EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 3500 Clearance between tie-bars (WxH) mm 830×830 Clamp platens max. (WxH) mm 1140×1140 Mold space mm 350～700 Plasticizing capacity C1100 C1600 C2200 Screw diameter L L L mm 50 56 63 56 63 71 63 71 80 Maximum injection pressure MPa 230 187 148 230 188 148 216 188 148 Injection mass (GPPS) g 490 614 778 685 867 1102 957 957 1544 Plasticizing capacity kg/h 151 192 227 192 227 230 227 230 303 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 7446×2027×2147 Machine mass t 16.5 SE385EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 3850 Clearance between tie-bars (WxH) mm 830×830 Clamp platens max. (WxH) mm 1140×1140 Mold space mm 350～700 Plasticizing capacity C1100 C1600 C2200 Screw diameter L L L mm 50 56 63 56 63 71 63 71 80 Maximum injection pressure MPa 230 187 148 230 188 148 216 188 148 Injection mass (GPPS) g 490 614 778 685 867 1102 957 957 1544 Plasticizing capacity kg/h 151 192 227 192 227 230 227 230 303 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 7546×2027×2147 Machine mass t 16.5 SE450EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 4500 Clearance between tie-bars (WxH) mm 920×920 Clamp platens max. (WxH) mm 1300×1300 Mold space mm 350～800 Plasticizing capacity C2200 C3000 Screw diameter L L mm 63 71 80 71 80 90 Maximum injection pressure MPa 216 188 148 216 187 187 Injection mass (GPPS) g 957 1216 1544 1368 1737 2198 Plasticizing capacity kg/h 227 230 303 230 303 390 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 8361×2252×2232 Machine mass t 23.8 SE500EV-A-HD Specifications Unit Figures Max. mold clamp force kN{tf} 5000 Clearance between tie-bars (WxH) mm 920×920 Clamp platens max. (WxH) mm 1300×1300 Mold space mm 350～800 Plasticizing capacity C2200 C3000 Screw diameter L L mm 63 71 80 71 80 90 Maximum injection pressure MPa 216 188 148 216 187 187 Injection mass (GPPS) g 957 1216 1544 1368 1737 2198 Plasticizing capacity kg/h 227 230 303 230 303 390 Maximum injection speed mm/s 160 Dimensions (LxWxH) mm 8461×2252×2232 Machine mass t 23.8
SE-HSZ (Clamping Force : 2150kN～3430kN)
Medium-sized full electric ejection molding machine that has realized the world of ultraprecision high cycle molding
By incorporating a second generation direct drive system, this series delivers low inertia, high response injection, and attains the injection performance of a hydraulic machine with accumulator.
- Specifications
-

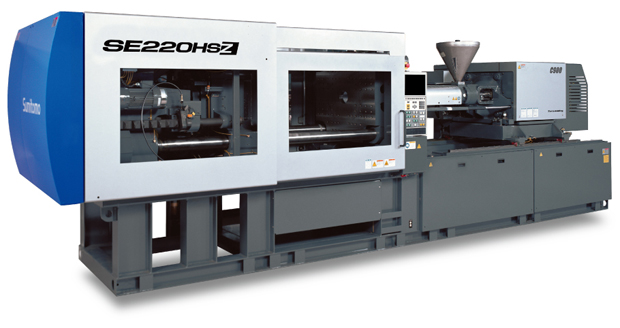

SE220HSZ Specifications Unit Figures Max. mold clamp force kN{tf} 2150{220} Clearance between tie-bars (WxH) mm 610×560 Clamp platens max. (WxH) mm 880×830 Mold space mm 300～580 Plasticizing capacity C560 C900 Screw diameter M L mm 28 32 36 40 45 50 45 50 56 Maximum injection pressure MPa 289 275 272 274 215 174 267 216 172 Injection mass (GPPS) g 83 124 156 193 244 302 316 390 489 Plasticizing capacity kg/h 37 53 76 101 136 193 149 202 246 Maximum injection speed mm/s 350 350 Dimensions (LxWxH) mm 6436×1580×2065 6436×1580×2254 Machine mass t 10.1 10.9 SE280HSZ Specifications Unit Figures Max. mold clamp force kN{tf} 2740{280} Clearance between tie-bars (WxH) mm 685×635 Clamp platens max. (WxH) mm 950×885 Mold space mm 350～620 Plasticizing capacity C900 C1250 Screw diameter L L mm 45 50 56 50 56 63 Maximum injection pressure MPa 267 216 172 274 218 172 Injection mass (GPPS) g 316 390 489 430 539 682 Plasticizing capacity kg/h 149 202 246 202 246 290 Maximum injection speed mm/s 350 350 Dimensions (LxWxH) mm 7217×1680×2254 Machine mass t 13.0 13.7 SE350HSZ Specifications Unit Figures Max. mold clamp force kN{tf} 3430{350} Clearance between tie-bars (WxH) mm 760×710 Clamp platens max. (WxH) mm 1070×1020 Mold space mm 400～670 Plasticizing capacity C1250 C1700 Screw diameter L L mm 50 56 63 63 71 Maximum injection pressure MPa 274 218 172 215 169 Injection mass (GPPS) g 430 539 682 742 943 Plasticizing capacity kg/h 202 246 290 290 327 Maximum injection speed mm/s 350 350 Dimensions (LxWxH) mm 7511×1770×2254 7522×1770×2254 Machine mass t 17.9 18.1 SE280HSZ Packaging spec. Specifications Unit Figures Max. mold clamp force kN{tf} 2740{280} Clearance between tie-bars (WxH) mm 685×635 Clamp platens max. (WxH) mm 950×885 Mold space mm 350～720 Plasticizing capacity C1250 C1700 Screw diameter L L mm 50 56 63 63 71 Maximum injection pressure MPa 274 218 172 215 169 Injection mass (GPPS) g 430 539 682 742 943 Plasticizing capacity kg/h 202 273 290 290 374 Maximum injection speed mm/s 650 Dimensions (LxWxH) mm 7707×1680×2304 Machine mass t 15.3 15.5 SE350HSZ Packaging spec. Specifications Unit Figures Max. mold clamp force kN{tf} 3430{350} Clearance between tie-bars (WxH) mm 760×710 Clamp platens max. (WxH) mm 1070×1020 Mold space mm 400～770 Plasticizing capacity C1700 C2500 Screw diameter L L mm 63 71 71 80 Maximum injection pressure MPa 215 169 229 180 Injection mass (GPPS) g 742 943 1095 1390 Plasticizing capacity kg/h 290 374 374 440 Maximum injection speed mm/s 650 550 Dimensions (LxWxH) mm 8196×1770×2254 Machine mass t 18.9 19.0
CL (Clamping Force : 5390kN)
Large-sized full electric ejection molding machine to realize "a small machine for a big work"
By consolidation the latest molding technologies of all-electric machines, Sumitomo has condensed a plethora of advanced features and larger mold mountiong performance into a compact machine frame, to deliver a "compact large class electric machine".
- Specifications
-

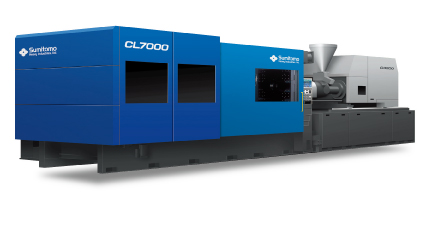

CL7000 Specifications Unit Figures Max. mold clamp force kN{tf} 5390{550} Clearance between tie-bars (WxH) mm 970×970 Clamp platens max. (WxH) mm 1410×1390 Mold space mm 400～800 Plasticizing capacity C2300 C3200 Screw diameter CL CL mm 63 76 76 84 Maximum injection pressure MPa 215 148 186 153 Injection mass (GPPS) g 943 1372 1568 1915 Plasticizing capacity kg/h 182 201 201 274 Maximum injection speed mm/s 160 160 Dimensions (LxWxH) mm 8440×2333×2573 8440×2333×2573 Machine mass t 35.7 36.7
SE-DUZ (Clamping Force : 170kN～290kN)
All electric injection molding machine
Sumitomo's direct drive, featured by high power and high response, has evolved even further to deliver precision handling and stability of a higher dimension and meet a broader range of molding needs.
- Specifications
-

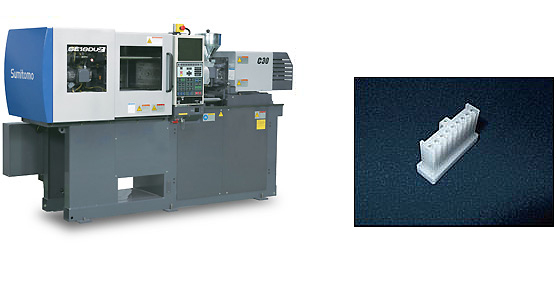

SE18DUZ Specifications Unit Figures Max. mold clamp force kN{tf} 170{18} Clearance between tie-bars (WxH) mm 260×235 Clamp platens max. (WxH) mm 355×355 Mold space mm 130～250 Plasticizing capacity C30 Screw diameter - mm 14 16 18 20 Maximum injection pressure MPa 223 266 210 170 Injection mass (GPPS) g 5.9 11 13 17 Plasticizing capacity kg/h 5.1 9.5 13 16 Maximum injection speed mm/s 500 Dimensions (LxWxH) mm 2431×758×1531 Machine mass t 1.2 SE30DUZ Specifications Unit Figures Max. mold clamp force kN{tf} 290{30} Clearance between tie-bars (WxH) mm 310×290 Clamp platens max. (WxH) mm 440×420 Mold space mm 150～300 Plasticizing capacity C50 C75 Screw diameter S S mm 18 20 22 20 22 25 Maximum injection pressure MPa 262 212 175 270 223 172 Injection mass (GPPS) g 18 22 27 26 32 41 Plasticizing capacity kg/h 10 13 18 13 18 26 Maximum injection speed mm/s 500 Dimensions (LxWxH) mm 3194×892×1679 3194×892×1679 Machine mass t 1.8 1.8
All electric super high speed injection molding machine
SE-HP (Clamping Force : 1000kN～1800kN)
SE-EV/HDZ-based super high speed all electric injection molding machine
This series is super high speed fully electric machines built on the same platform as of the SE-DUZ. By combining a direct drive mechanism with servo control system, they realize the super high speeds and high response needed for thin-walled molding is realized.
- Specifications
-

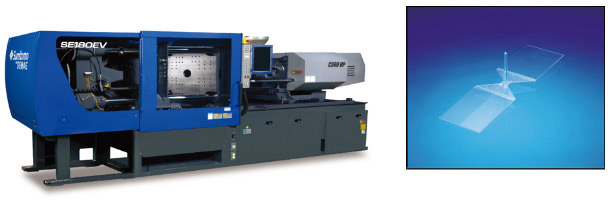

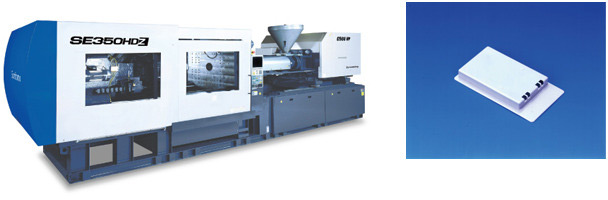

SE100EV-HP Specifications Unit Figures Max. mold clamp force kN{tf} 1000 Clearance between tie-bars (WxH) mm 460×460 Clamp platens max. (WxH) mm 650×650 Mold space mm 180～450 Plasticizing capacity C360HP Screw diameter M mm ((25)) ((28)) 28 32 36 Maximum injection pressure MPa 392 343 289 275 218 Injection mass (GPPS) g 54 67 67 88 111 Plasticizing capacity kg/h 18 26 37 53 76 Maximum injection speed mm/s 1000 Dimensions (LxWxH) mm 4502×1192×1837 Machine mass t 4.2 SE130EV-HP Specifications Unit Figures Max. mold clamp force kN{tf} 1300 Clearance between tie-bars (WxH) mm 510×510 Clamp platens max. (WxH) mm 720×720 Mold space mm 180～450 Plasticizing capacity C360HP Screw diameter M mm ((25)) ((28)) 28 32 36 Maximum injection pressure MPa 392 343 289 275 218 Injection mass (GPPS) g 54 67 67 88 111 Plasticizing capacity kg/h 18 26 37 53 76 Maximum injection speed mm/s 1000 Dimensions (LxWxH) mm 4732×1292×1882 Machine mass t 5.0 SE180EV-HP Specifications Unit Figures Max. mold clamp force kN{tf} 1800 Clearance between tie-bars (WxH) mm 560×560 Clamp platens max. (WxH) mm 800×795 Mold space mm 200～500 Plasticizing capacity C360HP C560HP Screw diameter M M mm ((25)) ((28)) 28 32 36 ((32)) ((36)) 36 40 45 Maximum injection pressure MPa 392 343 289 275 218 343 332 259 269 223 Injection mass (GPPS) g 54 67 67 88 111 108 137 137 169 214 Plasticizing capacity kg/h 18 26 37 53 76 37 53 76 101 136 Maximum injection speed mm/s 1000 1000 Dimensions (LxWxH) mm 5121×1362×1923 5121×1362×2018 Machine mass t 6.2 6.5 SE220HDZ-HP Specifications Unit Figures Max. mold clamp force kN{tf} 2150{220} Clearance between tie-bars (WxH) mm 610×560 Clamp platens max. (WxH) mm 880×830 Mold space mm 300～580 Plasticizing capacity C560HP Screw diameter M mm ((32)) ((36)) 36 40 45 Maximum injection pressure MPa 343 332 259 269 213 Injection mass (GPPS) g 124 156 156 193 244 Plasticizing capacity kg/h 37 53 76 101 136 Maximum injection speed mm/s 800 Dimensions (LxWxH) mm 6436×1580×2065 Machine mass t 10 SE280HDZ-HP Specifications Unit Figures Max. mold clamp force kN{tf} 2740{280} Clearance between tie-bars (WxH) mm 685×635 Clamp platens max. (WxH) mm 950×885 Mold space mm 350～620 Plasticizing capacity C560HP Screw diameter M mm ((32)) ((36)) 36 40 45 Maximum injection pressure MPa 343 332 259 269 213 Injection mass (GPPS) g 124 156 156 193 244 Plasticizing capacity kg/h 37 53 76 101 136 Maximum injection speed mm/s 800 Dimensions (LxWxH) mm 7217×1680×2065 Machine mass t 12 SE350HDZ-HP Specifications Unit Figures Max. mold clamp force kN{tf} 3430{350} Clearance between tie-bars (WxH) mm 760×710 Clamp platens max. (WxH) mm 1070×1020 Mold space mm 400～670 Plasticizing capacity C560HP Screw diameter M mm ((32)) ((36)) 36 40 45 Maximum injection pressure MPa 343 332 259 269 213 Injection mass (GPPS) g 124 156 156 193 244 Plasticizing capacity kg/h 37 53 76 101 136 Maximum injection speed mm/s 800 Dimensions (LxWxH) mm 7511×1770×2065 Machine mass t 16 SE450HDZ-HP Specifications Unit Figures Max. mold clamp force kN{tf} 4410{450} Clearance between tie-bars (WxH) mm 870×820 Clamp platens max. (WxH) mm 1240×1154 Mold space mm 450～800 Plasticizing capacity C560HP Screw diameter M mm ((32)) ((36)) 36 40 45 Maximum injection pressure MPa 343 332 259 269 213 Injection mass (GPPS) g 124 156 156 193 244 Plasticizing capacity kg/h 37 53 76 101 136 Maximum injection speed mm/s 800 Dimensions (LxWxH) mm 7663×2070×2065 Machine mass t 24
