Naha tunnel extends approximately 1.1 km across Naha harbor channel,
and is part of an expressway. The tunnel is constructed with eight
prefabricated steel-shell sections submerged at the site. The No.2
shell section fabricated at our factory was delivered to the site
in March 2002. This paper reports the new technologies applied to
the construction and transport of the shell section.
1) All members of the shell were constructed with a fully sandwiched
structure, that is, double steel shells filled with concrete in-between.

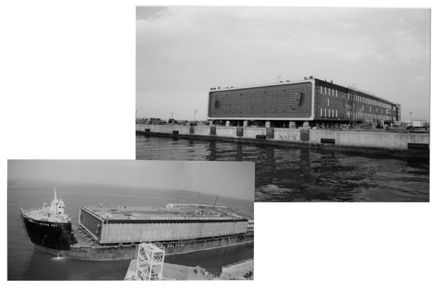

2) The shell section was loaded on a barge using skid bases. To
reduce the friction during loading the section, the shell skid beams
were coated with stainless steel at the bottom, and the top of the
skid supports was coated with Teflon.
3) The semi-submergible barge loaded with the section was towed
to Naha, Okinawa.
4) After the section was tied up at a quay near the site, super-politicized
concrete was placed into space between the shell plates while the
shell was floated.
5) The three-dimensional measurement was implemented on a regular
basis for the whole shell section to check for any irregularity
or deformation.
|
